The mission reached a major milestone on June 29, when the Dragonfly team at the Johns Hopkins Applied Physics Laboratory (APL) in Laurel, Maryland, delivered the nearly 13-foot-long fuselage for the next phase of spacecraft integration ahead of schedule. The delivery followed a roughly month-long process of structural testing of the lander frame assembly, which carried many of the features that give the Dragonfly rotorcraft its unmistakable shape — including its landing skids, the cap for the spacecraft’s power source, and the arms that will eventually hold its eight sets of rotors.

“It was pretty awesome to see the lander, as we designed it, become real,” said Hunter Reeling, Dragonfly thermal-mechanical integration and test lead from APL.

With structural testing complete and the fuselage delivered, the team started integrating the mechanical, thermal and electrical systems on July 1, kicking off the process that will turn the lander into the flying science lab it’s meant to be.

Throughout the month, they’ll populate Dragonfly’s fuselage with the flight bulkheads, as well as the wiring harness, cables and connectors — the electrical “nervous system” that ties Dragonfly’s systems together. Electronics boxes, avionics and science instruments will follow as mission partners across the country complete their own assembly and test campaigns.

“From here, it’s about populating that structure with electronics boxes, instruments, wiring, insulation — everything that will enable its mission,” Reeling said. “It’s all about getting Dragonfly ready to launch.”

Link back home

One of the most visible additions came in May, when the Dragonfly team at APL integrated the mission’s high-gain antenna, the primary system that operators will use to communicate with the rotorcraft and retrieve the science data it collects on Titan.

Engineer Jackson Banbury at Johns Hopkins APL inspects the motorized arm that attaches Dragonfly’s high-gain antenna to the spacecraft body. The arm will raise the antenna when Dragonfly is stationary and lower it into a locking mechanism before each flight.

NASA/Johns Hopkins APL/Ed Whitman

The high-gain antenna is a 34.4-inch-wide (87.4-centimeter-wide) disc made of electrically insulating foam sandwiched between two metal plates that contain hundreds of small slots. Together, these slots will narrow and focus the radio beam back to Earth. Adapted from technology originally developed for planetary defense applications, Dragonfly’s high-gain antenna, larger than previously flown systems, is attached to a motorized arm that will raise the antenna when the rotorcraft is stationary and lower it into a locking mechanism before Dragonfly takes off again.

“Every time the lander prepares to fly to another location, we store the antenna so it survives the vibrations created during flight and prevents resonance that could interfere with the rest of the lander,” said Jackson Banbury, Dragonfly telecommunications mechanical and thermal lead at APL.

The antenna and its gimbal are designed and tested to endure the rigors of Titan’s environment, including frigid temperatures averaging around minus 290 degrees Fahrenheit (minus 179 degrees Celsius), swirling dust on the surface, and potentially liquid methane rain.

Shaken, sealed, delivered

From May through early June, engineers and technicians at APL put the Dragonfly rotorcraft through vibration and sealing tests designed to show that the fuselage’s structural backbone can withstand the loads of launch, entry through Titan’s atmosphere, and landing on the surface of this ocean world.

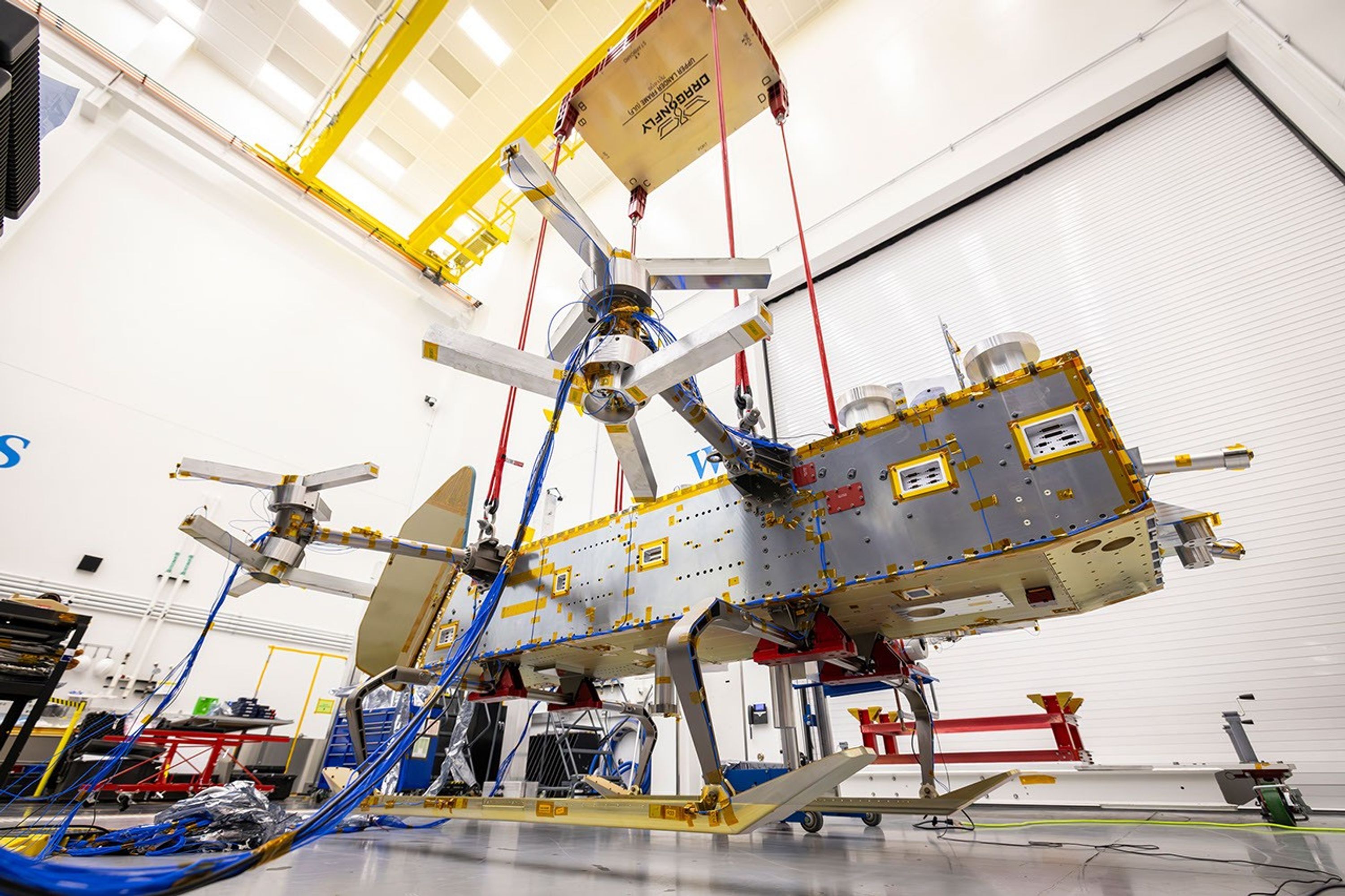

For vibration testing, the team installed mass simulators in place of the flight instruments and electronics being built and tested elsewhere. The ground vibration test gave the team a fleeting preview of Dragonfly in the air. Engineers suspended the rotorcraft’s structure a few inches off the ground from long bungee cords, then measured how mechanical vibrations at the rotor locations traveled through the frame to key sensors on the main body.

“Suspended for a few hours during that test – even barely above the floor – was structurally akin to Dragonfly’s first flight,” said Gordon Maahs, the Dragonfly mechanical systems engineer from APL. “It gets the imagination going about what actual flight will look like.”

The test also included a “sit down” configuration, lowering the lander onto protective padding so it rested on its skids while engineers measured how the structure would respond on Titan’s surface.

Engineers mount the inverted Dragonfly structure to a vibration table at the vibration test facility at Johns Hopkins APL. Vibration tests expose the lander structure to a systematic series of tests that ensure it can hold up to the forces it will experience during launch, entry into Titan’s atmosphere, and landing on the surface of this ocean world.

NASA/Johns Hopkins APL/Ed Whitman

The sealing test was more unusual. Most planetary spacecraft are built for the vacuum of space or worlds with thin atmospheres. But Dragonfly is headed to Titan, where the surface atmosphere is dense, cold and about 1.5 times the pressure of Earth’s, so engineers needed to understand how well the assembled structure could keep that environment out. The solution: pressurize Dragonfly’s outer structure to identify any gaps, cracks or holes that could allow air flow in and out of the lander on Titan.

“I’ve never seen a test like it on any other spacecraft,” Maahs said. “We get a total flow rate based off of the sealing test, and that feeds our thermal analysis to determine if we’re sealed enough.”

The results, Maahs added, were “extremely good.”

Watch Eye on Dragonfly Live, an inside look at the mission’s progress, livestreamed hereon July 16 at 2 p.m. ET. Hear from Dragonfly scientists and engineers, direct from the clean room, as they discuss the spacecraft’s latest milestones in integration and testing, explain how Dragonfly will explore Titan, and answer audience questions about the mission.

Quelle: NASA

----

Update: 26.10.2026

.

NASA’s Dragonfly Completes First Simulated Flight

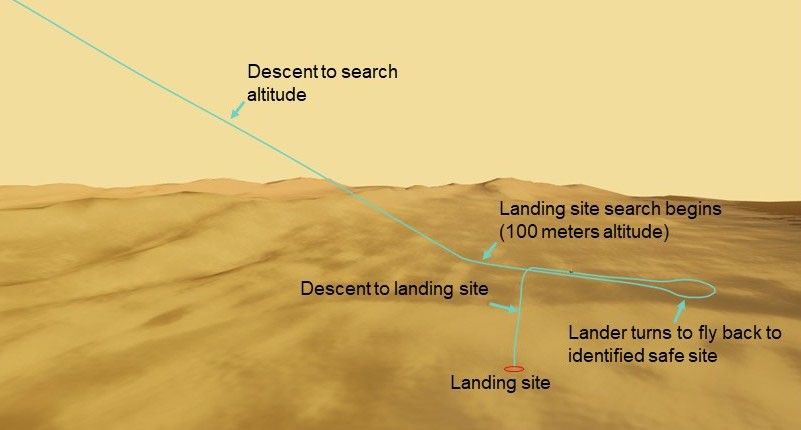

Separated from its protective backshell, NASA’s Dragonfly rotorcraft autonomously speeds over the sand dunes of Titan. It scans the terrain below, searching for a safe place to land. When Dragonfly discovers a safe site, it turns, descends, and lands at the selected location, touching down for the first time on the surface of Saturn’s largest moon.

A successful first flight – except, this wasn’t happening on Titan itself, but on a computer testbed at the Johns Hopkins Applied Physics Laboratory (APL) in Laurel, Maryland, where the Dragonfly rotorcraft is undergoing integration and testing. It was the most comprehensive test to date of Dragonfly’s “first flight” in real time on flight-like avionics, incorporating most of the systems and maneuvers the rotorcraft will employ when it arrives at Titan in 2034.

Dragonfly is scheduled to launch no earlier than 2028 for a six-year voyage to Saturn’s moon Titan, where it will spend three years flying from location to location to explore a range of sites to study the chemistry, geology, and atmosphere of the Earthlike moon and ultimately advance our understanding of life’s chemical origins.

“The cool thing about first flight is that it’s our most challenging flight,” said Zach Putnam, Dragonfly mobility subsystem lead engineer at APL. “It uses every piece of flight sensor hardware on the lander.”

The recent test brought together flight software and avionics with simulated data input from the sensors Dragonfly will use at Titan, including its newly installed navigation cameras, inertial measurement units, and lidar system.

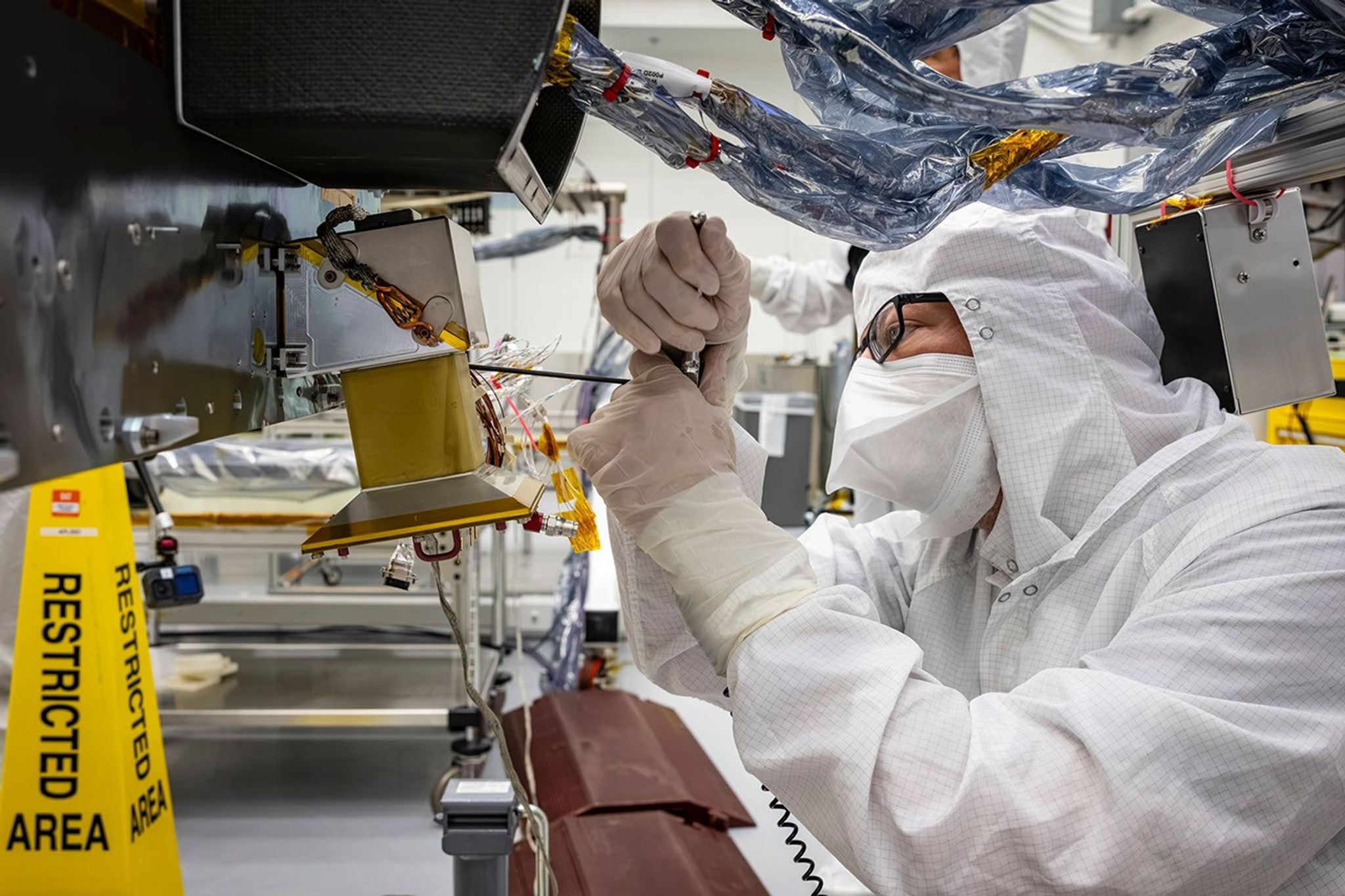

Technician Emory Toomey installs one of Dragonfly’s two navigation cameras in a cleanroom at the Johns Hopkins Applied Physics Laboratory (APL) in Laurel, Maryland, on Aug. 19, 2026.

NASA/Johns Hopkins APL/Ed Whitman

It was a milestone years in the making. The team has built Dragonfly’s flight capabilities incrementally, beginning with simulations of relatively simple activities such as the spinning of a single rotor. Later tests demonstrated a short “reposition” flight and a partial scouting flight, adding more sensors and capabilities at each step.

“Doing it incrementally is what enabled us to build these tests at all,” said Putnam. Adding lidar — the system Dragonfly will use to measure terrain altitude and slope and identify potential hazards — provided the final piece needed to fully simulate what the rotorcraft will encounter on Titan.

The team generated simulated terrain for the lidar and created, in real time, the images Dragonfly’s navigation cameras would see. A custom camera emulator used graphics processing units to render each simulated Titan scene in roughly the same 20 to 70 milliseconds exposure times Dragonfly’s cameras will use during flight.

Running the complete sequence on flight-like hardware gave the team an important opportunity to see how all those pieces interact — including those details measured in milliseconds as information zips between different processes aboard the lander.

“These tests provide an important validation that everything works together,” said Putnam.

And there are many more tests to come. The team plans to run first flight on Dragonfly’s actual flight system, not a testbed, using the rotorcraft’s avionics. Engineers also will test other flight profiles and deliberately introduce faults to make sure Dragonfly can respond autonomously if something goes wrong.

“That autonomy is essential at Titan, where Dragonfly will have to fly without real-time help from Earth,” Putnam said. “Everything we do on Titan has to happen autonomously.”

Striking a pose

Before Dragonfly can make that first flight on Titan, it has to shift into position to be able to fly. Testing is also underway to ensure that the mechanisms handling that critical step will lower the rotorcraft below the entry system’s backshell, where it can safely start its rotors prior to separation from the entry system and begin its final descent to Titan’s surface.

Engineers at Lockheed Martin in Denver monitor a test of Dragonfly’s pose mechanism — the system that will lower the rotorcraft from its stowed position inside the backshell into position for release during descent at Titan.

Lockheed Martin

The test campaign evaluates Dragonfly’s “pose” mechanism, the system that will lower the rotorcraft from its stowed position inside the backshell into position for release during the descent at Titan. Engineers at Lockheed Martin in Colorado – where the elements of Dragonfly’s interplanetary cruise stage and atmospheric entry, descent and landing assembly are coming together – recently conducted static tests with representative mass, pushing and pulling on the mechanism to verify it can withstand expected loads, as well as deployment tests to see how smoothly and quickly the system lowers, and whether it locks securely into place.

The tests also consider how Dragonfly’s backshell may swing beneath its parachute when the rotorcraft is deployed. Engineers tilt the test hardware to different angles and repeat the deployment to confirm the mechanism performs properly across a range of conditions.

The pose structure connects the backshell to an aluminum interface structure that attaches to the Dragonfly lander. During the actual descent, the pose mechanism will lower that interface — and Dragonfly with it — before the rotorcraft separates and begins flying under its own power. The testing is designed to make sure that critical transition works reliably before Dragonfly ever has to perform it nearly a billion miles from Earth.
